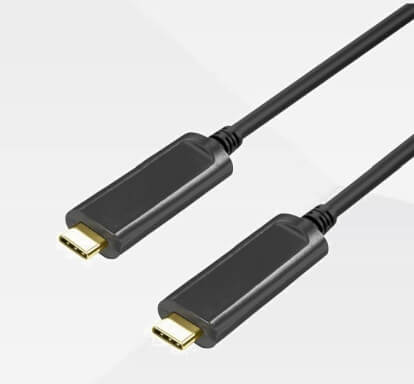

USB-C AOC Cable

USB-C AOC Cable

Data only

Not backward compatible version

Max Length: 30M

USB 3.2 Gen2x1 10Gbps Type C to Type C Active Optical Cable

Key Features:

• High-Speed Data Transfer: Supports USB 3.2 Gen 2×1 for up to 10Gbps data transmission.
• Long-Distance Connectivity: Maximum length of 30 meters (98 feet) without signal loss.
• Not Backward Compatible: Specifically designed for USB 3.2, not compatible with USB 2.0 or USB 1.1.
• No External Power Required: Operates without the need for additional power supply.
• Durable Build: Gold-plated USB Type-C connectors with a zinc-alloy shell for enhanced durability.
• Customizable Jacket Options: Available with PVC, CMP, LSZH, TPE, or silicone jackets.
• Bidirectional Use: Supports USB Type-C insertion from both front and back.
• Hybrid Design: Combines 4 optical fibers and 2 copper wires for reliable performance.
• Supports Remote Device Powering: Up to 5V/900mA power delivery for connected devices.
• Slim Profile: Compact outer diameter of 4.5±0.2mm for easy installation.

USB-C AOC Cable Applications:

◆ Industrial Camera

◆ Conference System

◆ Machine Vision

◆ Robotics

◆ Medical

◆ AR/VR/MR

◆ Remote Storage

◆ High definition Video Surveillance System
